RFA y curva de respuesta de las plantas
Al igual que los seres humanos necesitamos una alimentación balanceada, las plantas necesitan luz balanceada de espectro total para tener buena salud y un crecimiento óptimo. La calidad de luz que recibe una planta es tan importante como la cantidad. Las plantas son sensibles a una porción del espectro similar al ojo humano. A esta porción del espectro de luz se la conoce como radiación fotosintéticamente activa o RFA, especialmente al espectro de longitud de onda de entre 400 y 700 nanómetros aproximadamente. Sin embargo, la forma en que una planta responde a la luz dentro del espectro difiere considerablemente de la forma en que responden los seres humanos.
El ojo humano presenta una sensibilidad máxima en la región amarilla-verdosa de aproximadamente
550 nanómetros. Las plantas, en cambio, responden con mayor eficacia a la luz roja y a la luz azul, más próximas a los dos extremos del espectro visible. Los siguientes gráficos ilustran la curva de respuesta del ojo humano y la curva de respuesta de la planta. Observe la enorme diferencia en los contornos.
Tal como la grasa aporta las calorías más eficaces para los seres humanos, la luz roja brinda la alimentación más eficaz para las plantas. Sin embargo, una planta que recibe únicamente luz roja o naranja no podrá desarrollar un volumen adecuado. Para el crecimiento y volumen de las hojas o el desarrollo vegetal también es necesaria la luz azul. Los agricultores a menudo creen que deben maximizar toda la luz disponible a fin de establecer las condiciones para un crecimiento óptimo. A principios del siglo XX, Frederick Blackman y Gabrielle Matthaei investigaron los efectos de la intensidad y la temperatura de la luz en la fotosíntesis. Sus hallazgos principales fueron los siguientes:
• A una temperatura constante, el índice de asimilación del carbono varía según la irradiación, que inicialmente aumenta a medida que aumenta la irradiación.
• Sin embargo, con una mayor irradiación, se pierde esta relación y el índice de asimilación del carbono se estabiliza. Con una irradiación constante, el índice de asimilación de carbono aumenta a medida que la temperatura aumenta en un rango limitado.
Este efecto se observa únicamente con niveles de irradiación elevados. Con un nivel de irradiación bajo, el aumento de la temperatura afecta muy poco el índice de asimilación del carbono.
Como puede observarse en el siguiente gráfico, existe una correlación positiva entre el índice de fotosíntesis y la intensidad de la luz hasta el punto en el que la curva
se nivela; a partir de este punto la luz agregada no aumenta el índice de fotosíntesis.

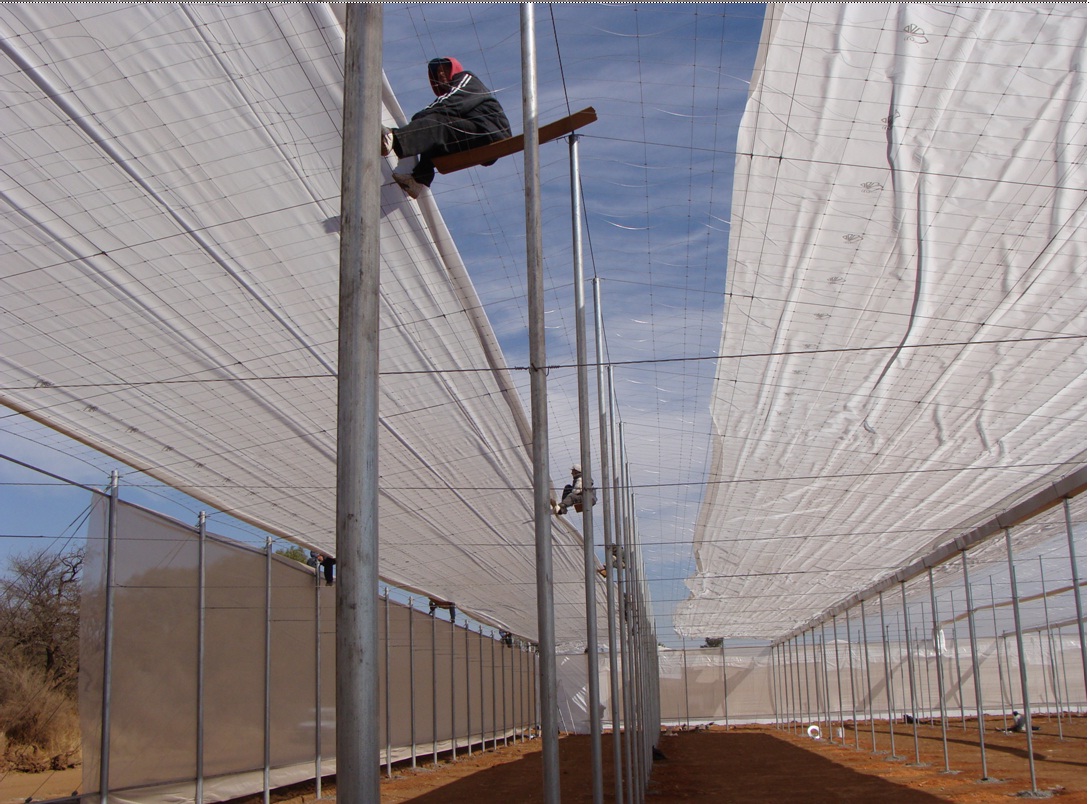

LA TRASMISIÓN DE LUZ A TRAVÉS DE CUBIERTAS DE INVERNADEROS HIDROPONICOS
Los principales factores que afectan la radiación solar que se transmite en el interior de un invernadero son: el tipo de estructura, la forma y la inclinación de la cubierta del invernadero, la orientación con respecto al sol, la ubicación del equipo de formación de sombra en el invernadero y las propiedades de la radiación solar (componentes directos y difusos) y de la película de protección. La luz debe optimizarse, así como también otros factores que promueven el crecimiento a fin de alcanzar la productividad óptima del invernadero (en términos cualitativos y cuantitativos). La intensidad y el espectro de la luz, así como el fotoperíodo, se deben regular según los requisitos del cultivo.
Cuando la luz incide sobre la cubierta del invernadero, pueden producirse varios fenómenos en la onda luminosa.
• La película podría absorberla. En este caso, la energía se convierte en calor.
• La película podría reflejarla.
• La película podría transmitirla.
Absorción
Cuando la luz llega a la película, es posible que se absorba por completo (película negra opaca) o parcialmente (película inteligente de aluminio).
Reflejo
El reflejo se produce cuando la luz que llega a la película se refleja parcial o totalmente (películas reflectantes teñidas, opacas o semiopacas).
Transmisión
La transmisión se produce cuando la luz atraviesa la película. La transmisión total de luz es la proporción entre la luz transmitida a través de la
película dividida por la intensidad total de luz. Existen dos tipos de transmisión: directa o difusa. • Transmisión directa (película transparente):
Se produce cuando la luz penetra la película y no se producen cambios de dirección. Las películas con transmisión directa tienen el nivel más elevado de transmisión de luz, en comparación con las películas difusas, tonalizadas y de aluminio. Estas películas se recomiendan generalmente en áreas con muy poca intensidad de radiación en el rango de RFA y especialmente durante los meses en los que la producción recibe una radiación limitada. Esta luz direccional e intensa crea sombras y rayos que queman. Sin difusión, la luz direccional provoca puntos calientes en un área pequeña del invernadero y causa quemaduras solares incluso en lejanas latitudes septentrionales, como Canadá y Europa del Norte. Con frecuencia, los cultivos requieren protección contra el exceso de luz a fin de mejorar la calidad del cultivo (evitar las frutas quemadas por el sol debido a la radiación directa) o bien prevenir aumentos de temperatura no controlados.
Además, con una cubierta transparente no difusa, la luz incidente será direccional y tendrá una distribución desigual en todo el follaje del cultivo.
A esto se le suma la presencia de sombra en algunos lugares del invernadero y, en consecuencia, plantas muy estresadas, lo que a su vez provoca una reducción de la producción y de la calidad.
Transmisión directa (película transparente):
Se produce cuando la luz penetra la película y no se producen cambios de dirección. Las películas con transmisión directa tienen el nivel más elevado de transmisión de luz, en comparación con las películas difusas, tonalizadas y de aluminio. Estas películas se recomiendan generalmente en áreas con muy poca intensidad de radiación en el rango de RFA y especialmente durante los meses en los que la producción recibe una radiación limitada. Esta luz direccional e intensa crea sombras y rayos que queman. Sin difusión, la luz direccional provoca puntos calientes en un área pequeña del invernadero y causa quemaduras solares incluso en lejanas latitudes septentrionales, como Canadá y Europa del Norte. Con frecuencia, los cultivos requieren protección contra el exceso de luz a fin de mejorar la calidad del cultivo (evitar las frutas quemadas por el sol debido a la radiación directa) o bien prevenir aumentos de temperatura no controlados.
Además, con una cubierta transparente no difusa, la luz incidente será direccional y tendrá una distribución desigual en todo el follaje del cultivo.
A esto se le suma la presencia de sombra en algunos lugares del invernadero y, en consecuencia, plantas muy estresadas, lo que a su vez provoca una reducción de la producción y de la calidad.
Transmisión difusa (película traslúcida)
La difusión de luz se logra simplemente por la propagación de las ondas luminosas. Un pequeño rayo de luz se propaga y difunde ondas luminosas en un área de mayor tamaño. La luz difusa proviene de varias direcciones y no de un punto de origen único. Los rayos solares directos se convierten en luz difusa cuando atraviesan un medio translúcido. El efecto creado variará según el tipo de cubierta (porcentaje de difusión) y la luz que la atraviesa. El objetivo es lograr la transmisión de luz uniforme y de espectro total.
La difusión de luz reduce los efectos de las sombras propias y estructurales y permite que las plantas reciban luz uniforme durante el día. La luz difusa aumenta la producción de energía de la planta y mejora las condiciones para el crecimiento ya que la luz difusa ilumina omnidireccionalmente para alcanzar las hojas inferiores en lugar de alcanzar solo el follaje superior. La forma más fácil de distinguir si la película es difusa es observando si las plantas forman sombra o no. Si lo hacen, entonces la película no es difusa. Si no
forman sombra, la película es difusa.
Tal como se observa en la siguiente figura.
Película no difusa
Película difusa
Una vez que comprendemos que las plantas responden a la luz de manera diferente a los seres humanos, también podemos observar las cosas de otra manera.
Desde Politiv, empresa líder en el sector de cubiertas para invernaderos, le ayudaremos a comprender mejor sus cultivos y, principalmente, a garantizar el bienestar de sus cultivos en el entorno del invernadero.
Ahed Watad. Director de Tecnología, A.A.Politiv (1999) Ltd.
Light
The main source of light on Earth is the Sun. Sunlight provides the energy that green plants use to create sugars mostly in the form of starches, which release energy into the living things that digest them. This process of photosynthesis provides virtually all the energy used by living things.
Light goes through film
Solar radiation spectrum is usually divided into three main ranges, based on the wavelength measured in nanometers (nm):
Visible light – from 380 to 700 nm – overlaps in most parts with PAR.
Ultra Violet (UV)
UV ranges from 100 nm to 400 nm. The Ozone layer absorbs the short-wave part up to 290 nm. The UV range – although it is only 6% of the total radiation – is highly energetic and may cause film degradation.
More phenomena related to UV: UV is essential for the development of some colors and fragments in flowers, vegetables and fruits. On the other hand, blocking the UV suppresses activity of insects (Anti-Virus) as well as helping enhance film stabilization. UV blocking is needed while growing red roses. Some fungus species need UV light to trigger sporulation; hence, UV Blocking will slow down this process.
POLITIV variety of hydroponic films are based on the most advanced technology of stabilizers and absorbers in order to get maximum lifetime, even under the highest radiation conditions.
POLITIV supplies wide hydroponic film selection with several degrees of UV Blocking, starting from Anti-Virus and Anti Blackening, through Bee-friendly and UV Open or «Nectarine». POLITIV TDS specifies the UV Transmission in the relevant ranges.
Photosynthetically Active Radiation & Visible Light
Light or visible light appears within the portion of the electromagnetic spectrum that can be perceived by the human eye. Visible light is usually defined as having wavelengths ranging from 380 nm to 740 nm.
More useful in agriculture is the Photosynthetically Active Radiation (PAR), ranging from 400 nm to 700 nm. This part of Light is essential to all plants. The irradiance of PAR can be measured in energy units (W/m2).
UV Vis instrument, used in POLITIV lab, calculates PAR percentage transmitted by the film when light flux is perpendicular to the film, according to the industry standards (such as EN 2155-5, ASTM D 1003 etc.).
POLITIV supplies wide film portfolio with different degrees of Light Transmission (LT).
INFRA RED (IR)
Infra-Red spectrum of light is the radiation ranging from 780 nm to 1 mm.
It is often divided into three sub-categories:
NIR range might contribute to overheating greenhouses. In hot areas, greenhouse’s inside-temperature may cause heat stress disorders in plants such as: water loss, enhanced water uptake, germination decreased and early seedling growth, reduced crop productivity, leaf curling and folding, dehydration, tips burning, etc.
POLITIV offers a variety of products enable to reduce extreme temperature in greenhouses: Milky, Smart Aluminum and Everest.
Far IR range (also referred as Thermal IR) enables greenhouse emitting energy back to the sky (during nights when there is no radiation coming in). Greenhouse temperature can drop down due to IR radiation (black body).
Thermal IR film will reduce heat loses during cold nights. POLITIV IR film designed to absorb most of the IR radiation in order to prevent energy losses.
Measuring IR range is done by FTIR. Thermicity is defined by the percentage of IR goes through the film ranging from 1400 cm-1 to 700 cm-1.
POLITIV Thermal IR film includes various items of changing thermicity, in combination with either transparent or diffused light transmission.
Followed by a significant R&D efforts, production and field trails, Politiv launched in 2015 a new revolutionary line of hydroponic films – Diamond®. Its main features are: Highlight transmission; High and unique lightdiffusion; Highthermicity.
HIGH LIGHT TRANSMISSION
Light or visible light is electromagnetic radiation within the portion of the electromagnetic spectrum that can be perceived by the human eye. Visible light is usually defined as having wavelengths in the range of 400–700 nanometers (nm), between the infrared (with longer wavelengths) and the ultraviolet (with shorter wavelengths.
Photosynthetically Active Radiation (PAR) designates the spectral range (wave band) of solar radiation from 400 to 700 nanometers that photosynthetic organisms are able to use in the process of photosynthesis. This spectral region corresponds more or less with the range of light visible to human eyes. PAR is essential to all crops. Rule of thumb says 1% addition in Light means 1% addition in crop.
HIGH LIGHT DIFFUSION
Diffused Light: Direct sunlight (undiffused light) can cause “shadow” effect and “sun burns”. Light diffuses
additives will scatter the direct light; thus, preventing the “shadow” effect and the “sun burns”. The light diffusion increases the photosynthetic efficiency by providing more homogeneous light from all directions. Light diffusion also gives advantage to growth with selfshading, such as cucumbers, tomatoes, squash, roses and others.
Diffused light, not only numbers.
Apparently not only the amount of light diffused is important also the way the light is diffused play a special role in how the plants can benefit from the diffusion. By selecting the right raw material, we got the ideal combination between Light Transmission and Light Diffusion.
THERMICITY
Part of the energy radiation is in the IR range starting from 700 to 1,400 nm. This range is invisible to the human eye. IR energy is absorbed from the sun during day time. Part of the IR – thermal IR – is emitted during the night. As a result, the temperature in the Greenhouse is reduced. Blocking the IR radiation from the greenhouse to the atmosphere minimizes the heat losses and reduces the risk of freezing. It is highly important, especially in cold night areas, to protect the crop with good thermcity film – one that ensures that less than 15% of the IR escapes.
Current status
Diamond® films are sold successfully worldwide.
Diamond® 15 used in Oxnard California and in Mexico both areas with strawberries
and raspberries growers show increase in light transmission and diffusion.
Especially in high altitudes of 2,000m above sea level gave better yield, quality and
higher quantities.
Politiv, in collaboration with the University of Almeria, conducts an ongoing field trial
which compares Diamond® films with regular ones. So far, it appears that there is
an advantage in favor of Diamond film (final results expected in spring 2021).
In Huelva area, known as an important berry growing center, multi tunnels covered
with Diamond® show significant increase in yield.
Summary
Diamond ® range of film represents ideal combination of three factors:
Excellent light transmission for maximum yield;
Excellent light diffusion for best crop;
Excellent thermicity for minimum energy losses, risk of frost and heating costs.
All Diamond® films can be supplied with:
»Sulfur resistance up to 5,000 ppm S.
»AntiMist
»Improved strength
»Other properties by request
»AntiFog for cold or hot climate
»AntiDust
»Bee friendly and UV open
As always, we are happy to set a new bar in the field of plastic products for industry and agriculture, and to provide our customers with every need.
Solar radiation and its effect
Solar radiation reaches the earth as a wide spectrum, 250 nm – 2800 nm. As can be seen in the following chart, this spectrum can be divided to three major ranges:
I- UV range: 250-400 nm
II- Visible range: 400-700 nm
III- Infra red range: 700-2800 nm
Each range has a different effect on the plastic film, plant, insects and bees:
I- Infrared radiation : has the weakest radiation and is expressed as heat. This radiation has no effect on the plastic or the insects in general.
II- PAR range (visible light): the plants use the visible light (PAR range) for the photosynthetic process, so it has a high influence on the plant behavior. On the plastic film it has no influence.
III- The UV range: has the highest and most aggressive energy. It has huge effect on the plastic film, insects and has effect on the red pigment development in plants.
a. Effect on the plastic: the UV irradiation damages the chemical bonds in the plastic and as result the plastic will degrade overtime. ( UV Degradation) In order to avoid early degradation UV stabilizers are used. There are many factors that influence the films’ UV stability, like UV content and type, films’ thicknesses, climate, agrochemicals and others.
b. Plants: In plastic ilm the UV irradiation transmission can be controlled depending on the additives that is used, it’s possible to block the UV irradiation up to 380 nm totally as in anti-virus or anti-blackening films, semi-blocking films up to 350 nm or UV opened films with the highest transmission at the range.
The UV irradiation has a effect on the red pigment development. In some cases, like in red roses, the UV irradiation should be block to avoid blacking while with Bi-color roses, red lettuce and Nectarine maximum transmission in the UV range is required.
Red Roses
Bi-color Roses
c. Effect on the Insects: in order to limit virus’s infection in the greenhouse, insects should be limited in the greenhouse. The insects need the UV irradiation to recognize the plants, thus, by blocking the UV irradiation the virus carring insect presence in the greenhouse will be limited and the insects’ reproduction will be limited also leading to less infections.
d. Effect on the Pollinating bees: The Pollinating bees (honey bees and Bumble/Bombus bees) are sensitive to the UV range mostly and partly the visible light as in the following draw:
the effect on the honey bees is more dramatic than the Bumble bees. The honey bees fly much higher that the Bumble bees and when the UV irradiation is fully blocked the bees fly toward the plastic therefore there pollination efficiency drops, trials were made in Israel, we found that Bumble bees can work perfectly under films that block the UV irradiation, while the honey bees activity was very low under theses film and very active under films have high transmission at the UV range.
In Politiv we produce wide range of films with different properties, all designed according to the customer requirements and needs.
PAR and Plant Response Curve
Just as humans need a balanced diet, plants need balanced, full-spectrum light for good health and optimum growth. The quality of light a plant receives is just as important as the quantity. Plants are sensitive to a similar portion of the spectrum as is the human eye.This portion of the light spectrum is referred to as Photo-synthetically Active Radiation or PAR, namely the wavelength Spectrum of about 400 to 700 nanometers. Nevertheless, the way a plant responds to light within this spectrum is very different from the way humans respond.
The human eye has a peak sensitivity in the yellow-green region, around 550 nanometers. Plants, on the other hand, respond more effectively to red light and to blue light, closer to the two extremities of the visible spectrum.The graphs below show the human eye response curve and the plant response curve. Note the vast difference in the contours.
Just as fat provides the most efficient calories for humans, red light provides the most efficient food for plants. However, a plant illuminated only with red or orange light will fail to develop sufficient bulk. Leafy, or vegetative, growth and bulk also require blue light. Farmers often think they need to maximize all of the available light for optimal growing conditions. In the early 20th century, Frederick Blackman and Gabrielle Matthaei investigated the effects of light intensity and temperature on photosynthesis. These were their main findings:
This effect is seen only at high irradiance levels. At low irradiance, increasing the temperature has little effect on the rate of carbon assimilation.
As can be seen from the following chart a positive correlation exists between the rate of photosynthesis and the light intensity as far as the point where the curve levels off, from which point the added light does not increase the rate of photosynthesis.
LIGHT TRANSMISSION THROUGH GREENHOUSE COVERS
The main factors affecting the solar radiation transmitted inside a greenhouse are the type of structure, the shape and slope of the greenhouse cover, its orientation with respect to the sun, the location of shadow-casting greenhouse equipment, and the properties of the solar radiation (direct and diffuse components)and of the covering film. Light has to be optimized, as well as other growth- inducing factors, in order to achieve optimum greenhouse productivity (quantitative and qualitative).Light intensity and spectrum as well as photo-period must be adapted to the crop requirements.
When light strikes the greenhouse cover, a number of things might happen to the light wave.
Absorption
When light reaches the film it may be absorbed in full (opaque black film),or partially (aluminum smart film).
Reflection
Reflection occurs when light reaching the film is reflected, partially or totally (reflective opaque or semi-opaque, tinted films).
Transmission
Transmission occurs when light passes through the film.The Total light transmission is the ratio between light transmitted through the film divided by total light intensity. There are two types of transmission: direct or diffused.
Light diffusion reduces the effects of structural shadows and self-shadow and allows the plants to receive even light during the day. Diffuse light increases plant energy production and improves growing conditions since the diffused light shines omnidirectionally to reach the lower leaves, rather than only reaching the upper canopy. The easiest way to distinguish whether the film is diffused or not, is to see whether or not the plants cast a shadow. If they do, then the film is non-diffused and if they do not, then the film is diffused.
Film as seen in the following scheme
Non diffused film
Diffused film
Once it is understood that plants respond to light differently than humans, it becomes possible to see things differently too. We at Politiv, as a leading company in the greenhouse covering industry, will help you to better understand your crops and, most of all, we will help you to guarantee the well-being of your crops in their greenhouse environment.
Diamond films
PAR and Plant Response Curve
Plants need balanced, full-spectrum light for good health and optimum growth. The quality of light a plant receives is just as important as the quantity. Plants are sensitive to a similar portion of the spectrum as is the human eye. This portion of the light spectrum is referred to as Photo-synthetically Active Radiation or PAR, namely the wavelength spectrum of about 400 to 700 nanometres.
LIGHT TRANSMISSION THROUGH GREENHOUSE COVERS
When light “strikes” the greenhouse cover, a number of things might happen to the light wave.
• It could be absorbed by the film, in which case its energy is converted into heat.
• It could be reflected by the film.
• It could be transmitted by the film. There are two types of transmission: direct or diffused.
1. Direct transmission (clear film):
Occurs when light penetrates the film and its direction remains unchanged. Films with direct transmission have the highest light transmission, this directional and intense light creates shadows and burning rays.
2. Diffuse transmission (translucent film):
Light diffusion is achieved simply by scattering light waves. A small intense beam of light scatters and disperses light waves across a wider area. Scattered light comes from many directions rather than from a single point of origin. The sun’s direct rays turn into diffused light avoiding all direct transmission dis advantages.
Light diffusion is achieved by adding mineral to the greenhouses covers, the standard diffusion agent and because of their chemistry, absorb part of the light, thus, the total light transmission is reduced. The Diamond 15 was developed to combine light transmission as the clear films and light diffusion without reducing the light transmission. As shown in the following spectrum films based on this technology has the same light transmission as clear film light transmission,
Also, Diamond 15 films have higher thermicity comparing to the standard film in the market,
Films based on Diamond 15 technology can contain also anti-fog, anti-mist, anti-virus and all other know greenhouses cover properties.
